Below are instructions and settings to set the custom modes on a Canon EOSR6 Mark II or any other Canon EOS camera model with three custom mode settings (C1/C2/C3) for MOTION PHOTOGRAPHY. For other than the R6MII the menu items might differ slightly, but most settings are applicable to most newer EOS D (mirrored) or R (mirrorless) model.
All my cameras are set up this way and I shoot 95% of all my motion photography pictures with one of these three C mode settings. The other 5% I shoot in M (manual) mode or AV mode.

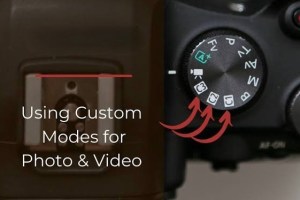

Custom Modes (based on AV)
C1 – Low and artificial light – ISO to be controlled manually (spotlight etc)
C2 – Normal light – regular movements – min 1/500sec
C3 – Bright light – fast movements – min 1/2000sec
How to do this:

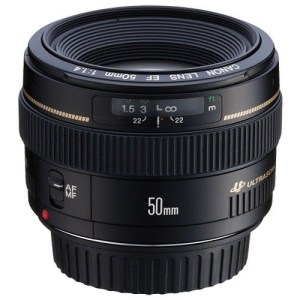

- First: If you have multiple lenses then put your lens with the highest aperture setting (=smallest number / most light intake) onto your camera.
- Second: Set your camera to AV mode and open the the aperture fully (smallest number / most light intake).
- Third: Set up all MENU settings including custom buttons according the list below
- Fourth: Set up all shooting setting (Info screen/Q BUTTON) according the list below
- Fifth: Set C1/C2/C3 with the adjustments listed below – set up C2 first, C3 second, and C1 last. (To change per C-mode: ISO | White balance | AF Area | AF Mode | Min shutter speed – see below)
NOTE: Only menu settings are listed below, which have been changed from their default setting.
Please let me know if you have any questions.
If you stay for two nights or more at any Thanda property you can book a complimentary photo lesson with me (must be booked at the same time as the accommodation is booked / based on availability). I will then offer to set up the camera for you.
CAMERA SETUP INSTRUCTIONS
1 SHOOTING tap in MENU
1-1-1 – Image quality = RAW or JPEG L (highest quality)
1-2-2 – ISO speed settings
1-2-2-1 ISO Speed = 100 (C2/C3) 1600 (C1)
1-2-2-2 ISO Range = 100 – 102400
1-2-2-3 Auto range = 100 – 102400
1-2-2-4 Min shutter speed = Auto
1-2-5 – Auto lighting optimizer = Off
1-2-6 – Highlight tone priority = Off
1-3-4 – Metering mode = Centre-weighted average
1-4-1 – White balance = K6500 (C2/C3) | AWB (C1)
1-4-5 – Picture style = Standard
1-7-1 – Drive mode = Single shooting (C1/C2) | High speed cont.+ (C3)
1-7-4 – Silent shutter = Off
1-7-6 – Release shutter without card = Off
1-8-2 – Set layout = Drive mode | AF | WB | Metering Mode
1-8-3 – Touch shutter = Disable
1-8-4 – Image review = 4sec | Disable
1-9-3 – See below
1-9-3-1 – Screen info settings = 1/4/5 on 2/3 off
1-9-3-2 – VF info/toggle settings = 1 on 2/3 off
1-9-3-3 – VF vertical display = on
1-9-3-4 – Grid display = 3×3 grid
1-9-4 – VF display format = Display 2
2 AF tap in MENU
2-1-1 – AF operation = One shot (C1) | Servo (C2/C3)
2-1-2 – AF area = Spot AF (C2) | 1-point AF (C1) | Whole area AF (C3)
2-1-4 – Subject to detect = None
2-1-5 – Eye detection = Disable
2-1-7 – Focus mode = AF
2-2 – No change for all options
2-4-1 – Touch&drag AF settings = Off
2-4-2 – Limit AF areas = Spot AF / 1-point AF / Whole area AF only
2-5-2 – Focus guide = Off
2-6-2 – Lens electronic MF = One shot enabled (magnify)
3 REVIEW tap in MENU
3-7-1 – Playback info display = Set only 1,2 on
3-7-2 – Highlight alert = Enable
3-7-3 – AF point disp. = Enable
3-7-4 – Playback grid = 3×3 grid
4 CONNECTION tap in MENU
4-3-1 – Airplane mode = On
4-3-4 – Set camera name (CSx)
5 CAMERA SETTINGS tap in MENU
5-1-3 – File name = Set user setting1 (CSx_)
5-1-5 – Auto rotate = Set option 2 (on & computer)
5-1-7 – Set Date/time/zone
5-2-1 – Language = English
5-2-3 – Help text size = Small
5-2-4 – Mode guide = Disable
5-2-5 – Feature guide = Disable
5-3-1 – Beep = Disable
5-3-4 – Power savings = Dimmer 30sec | Screen 3min | Power 5min | Viewfinder 3min
5-4-1 – Screen/viewfinder display = Auto1
5-4-2 – Screen brightness = 4
5-4-3 – Viewfinder brightness =Auto
5-5-1 – Touch control = Standard
5-6-2-1 CUSTOM SHOOTING MODES – DO LAST – see below
5-6-4 – Enter author’s name & copyright details
6 SETTINGS tap in MENU
6-1-1 – Exposure level increments = 1/2
6-1-2 – ISO speed setting increments = 1/1
6-1-4 – Bracketing auto cancel = Off
6-1-6 – Number of bracketed shots = 5
6-1-7 – Safety shift = ISO
6-2-3 – Set min shutter speed
- C1 – no restriction
- C2 – min 1/500sec
- C3 – min 1/2000sec
6-3-4 – See separate sections below (Customized buttons)
6-3-5 – Customized dials: top front=AV | top back=ISO | back=TV
6-4-4 – Release shutter w/o lens
7 CUSTOM MENU tap in MENU
7-1
Set menu option:
- Format card
- Focus Mode
- Subject to detect
- Eye detection (if available)
- Silent shutter function (if available)
- Shutter mode
- Custom shooting mode (C1-C3)
8 CUSTOM BUTTONS SETTINGS (6-3-4 Settings tap in MENU)
Photography Functions:
1 (shutter button) = Metering and AF start
2 (video button) = Movie recording
3 (M-Fn button) = no change (or White balance only)
4 (AF-ON button) = AF-OFF
5 (* button) = Silent shutter function
6 (AF area button) = AF area
7 (Front DoF button) = AF to/from MF
8 (Set button) = One Shot to/from Servo
9 (Joy stick) = Direct AF point selection
10 (Lens function button ) = AF-OFF
11 (Flash function button) = no change
Video Functions:
12 (M-Fn button) = no change
13 (AF-ON button) = AF-OFF
14 (* button) = AE lock
15 (AF area button) = AF area
16 (Front DoF button) = AF to/from MF
17 (Set button) = Pause servo AF
18 (Joy stick) = Direct AF point selection
19 (Lens function button ) = AF-OFF

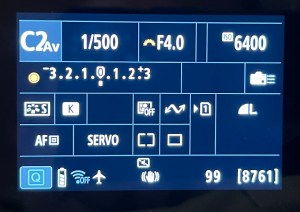

9 Q SETTINGS – Set by pressing the Q button on the settings info screen
- Shooting mode = AV
- F = 1.8 (or smallest # per lens)
- ISO = 1600 (C1) 100 (C2/C3)
- +/- = 0
- Picture mode = S
- White balance = AWB (C1) K6500 (C2/C3)
- Auto lighting optimizer = Off
- WiFi/Bluetooth connection = Airline mode
- Card = 1
- Quality = RAW or best quality JPEG
- AF mode = Spot AF (C2) | 1-point AF (C1) | Whole area AF (C3)
- AF operation = One Shot (C1) | Servo (C2/C3)
- Metering mode = Center-weighted metering
- Drive mode = Single shooting (C1/C2) | High speed cont.+ (C3)

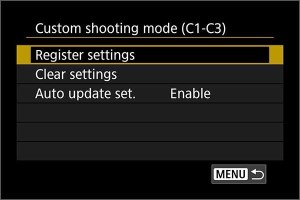

10 Set custom shooting mode (5-6-2-1 Camera settings tap in MENU)
- C1 = ISO 1600 | AWB | 1-point AF (C1) | Servo
- C2 = ISO 100 | K6500 | Spot AF (C2) | Servo | Min shutter speed 1/500sec
- C3 = ISO 100 | K6500 | Whole area AF (C3) | Servo | Min shutter speed 1/2000sec
End of document
